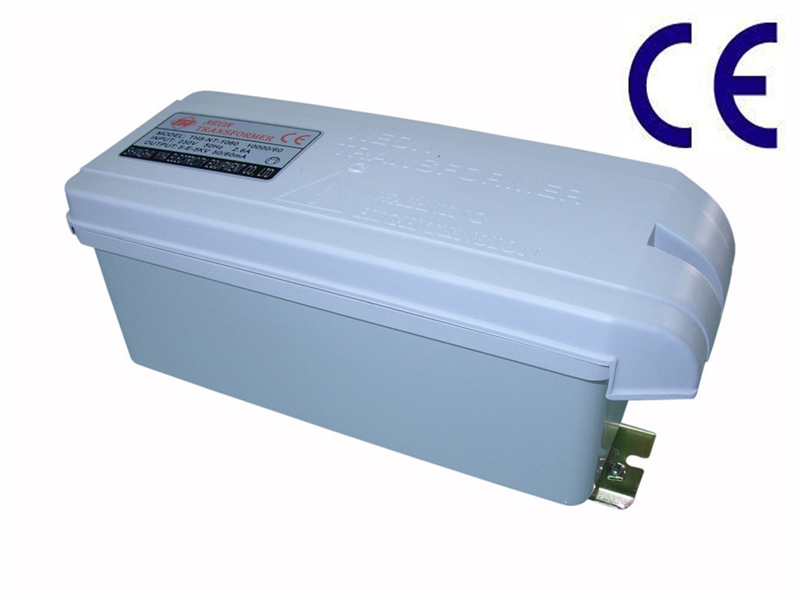

- TH5 series(big model)
- Model：
- Introduction： Impregnation under high vacuum eith epoxy resin with filling compounds Patented magnetic core at low consuption Metal box and coated with polyester powders High performance cycoloy PC/ABS alloy material Suitable for neon and also Argon tubing Specially suitable for cold cathode lighting or neon tube Dia.12mm Features: - Traditional coil and core transformer. - Compact size and light weight. - Epoxy resin filled and vacuum potted. - High reliability and long life. Environmental Specifications : - Cooling: Convection - Installation: Indoor or Outdoor
230V 50Hz 30mA Series CE Certification Transformer(240V,60Hz is optional)
|
Vendor's Model Name |
Input Voltage(V) |
Input Current(A) |
Frequency(Hz) |
Output Voltage(KV) |
Output Current(mA) |
Watts (VA) |
|
TH5-NT-1530(230) |
230 |
2 |
50 |
15 |
30 |
450 |
|
TH5-NT-1230(230) |
230 |
1.6 |
50 |
12 |
30 |
360 |
|
TH5-NT-1030(230) |
230 |
1.32 |
50 |
10 |
30 |
300 |
|
TH5-NT-1245(230) |
230 |
2.4 |
50 |
12 |
45 |
600 |
|
TH5-NT-1045(230) |
230 |
2 |
50 |
10 |
45 |
450 |
|
TH5-NT-0945(230) |
230 |
1.8 |
50 |
9 |
45 |
405 |
|
TH5-NT-7545(230) |
230 |
1.5 |
50 |
7.5 |
45 |
337.5 |
|
TH5-NT-1060(230) |
230 |
2.6 |
50 |
10 |
60 |
600 |
|
TH5-NT-0960(230) |
230 |
2.4 |
50 |
9 |
60 |
540 |
|
TH5-NT-7560(230) |
230 |
2 |
50 |
7.5 |
60 |
450 |
|
TH5-NT-0660(230) |
230 |
1.6 |
50 |
6 |
60 |
360 |
|
TH5-NT-0560(230) |
230 |
1.32 |
50 |
5 |
60 |
300 |
