TH5-NT SETUP INSTRUCTIONS 2015-07-22

A. Scope of use

This transformer suit for all kinds of neon tubing (Mixture argon/neon gas)

B. Installation requirement

1. Ensure the input voltage and frequency suited for the transformer

2.The transformer must be proper grounded

3. Minimize the length of HT cable

4. Keep the transformer away from the flammable material

5.Ensure mounted transformer in the cool place

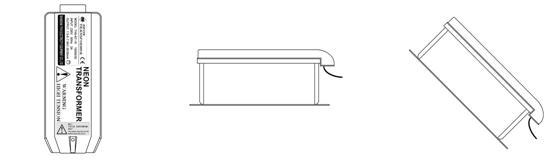

C. Installation position

1.Any place in indoor

2.The unit should be mounted in the proper place

3.Ensure fix it properly when install on the wall or any place vertically to the ground.

4.Any improper operating shall void the warranty

D. Principium of the transformer

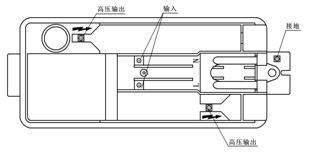

E. Connection

1.The input wire recommend use the >1.5mm2 plastic wire. Connect in L H

2.The out put cable must use the pressure-proof >15KV silicon cable and >0.5mm2 , connect to the output place.

3.Metallic conduit terminated in fittings listed for grounding all the way back to its breaker panel

4.ensure the screws tight when finish

F. Specifications

item model	input	output
item model	voltage (V)	voltage (KV)	current(mA)
TH5-NT-6	230 or 240	6	30
TH5-NT-7.5		7.5	30
TH5-NT-9		9	30
TH5-NT-12		12	30
TH5-NT-15		15	30
TH5-NT-7560		7.5	60
TH5-NT-1060		10	60

The loaded lamp (tube) length can be adjusted to the maximum value listed below

item model	Tube diameter (mm)		9	10	11	12	13	14	15	18	20
	Gas pressure (mmHg)		15	13	12	11	10	10	9	8	7.5
	type		Maximum load length
TH5-NT-6	neon	feet	12	13	15	16	18	19	20	23	28
	neon	meter	3.66	3.96	4.57	4.88	5.49	5.79	6.10	7.01	8.53
	mercury	feet	14	16	18	19	21	23	24	28	32
	mercury	meter	4.27	4.88	5.49	5.79	6.40	7.01	7.32	8.53	9.75
TH5-NT-7.5	neon	feet	15	17	19	21	22	24	26	28	34
	neon	meter	4.57	5.18	5.79	6.40	6.71	7.32	7.92	8.53	10.36
	mercury	feet	18	20	23	25	27	28	31	35	39
	mercury	meter	5.49	6.10	7.01	7.62	8.23	8.53	9.45	10.67	11.89
TH5-NT-9	neon	feet	18	21	24	26	29	30	33	40	48
	neon	meter	5.49	6.40	7.32	7.92	8.84	9.14	10.06	12.19	14.63
	mercury	feet	22	25	28	32	33	36	40	45	55
	mercury	meter	6.71	7.62	8.53	9.75	10.06	10.97	12.19	13.72	16.76
TH5-NT-12	neon	feet	26	29	32	35	39	42	45	55	61
	neon	meter	7.92	8.84	9.75	10.67	11.89	12.80	13.72	16.76	18.60
	mercury	feet	31	35	38	44	46	50	55	62	70
	mercury	meter	9.45	10.67	11.58	13.41	14.02	15.24	16.76	18.90	21.34
TH5-NT-15	neon	feet	32	36	40	45	50	54	60	72	78
	neon	meter	9.75	10.97	12.19	13.72	15.24	16.46	18.29	21.95	23.77
	mercury	feet	39	44	48	55	60	64	72	80	90
	mercury	meter	11.89	13.41	14.63	16.76	18.29	19.51	21.95	24.38	27.43
TH5-NT-7560	neon	feet							26	28	34
	neon	meter							7.92	8.53	10.36
	mercury	feet							31	35	39
	mercury	meter							9.45	10.67	11.89
TH5-NT-1060	neon	feet							37	45	51
	neon	meter							11.30	13.75	15.67
	mercury	feet							45	51	60
	mercury	meter							13.75	15.50	18.18

Remark:

The maximum length in feet may vary according to output cable length and environment. Deduct one foot from above figures for each pair of electrodes while more than two tubes connected in series. Figures for mercury tubes are based on operation in temperature above 4°C. Deduct 25% value of above if operation below 4°C. Do not operate over the maximum value, otherwise the life time and performance of this device may be reduce
